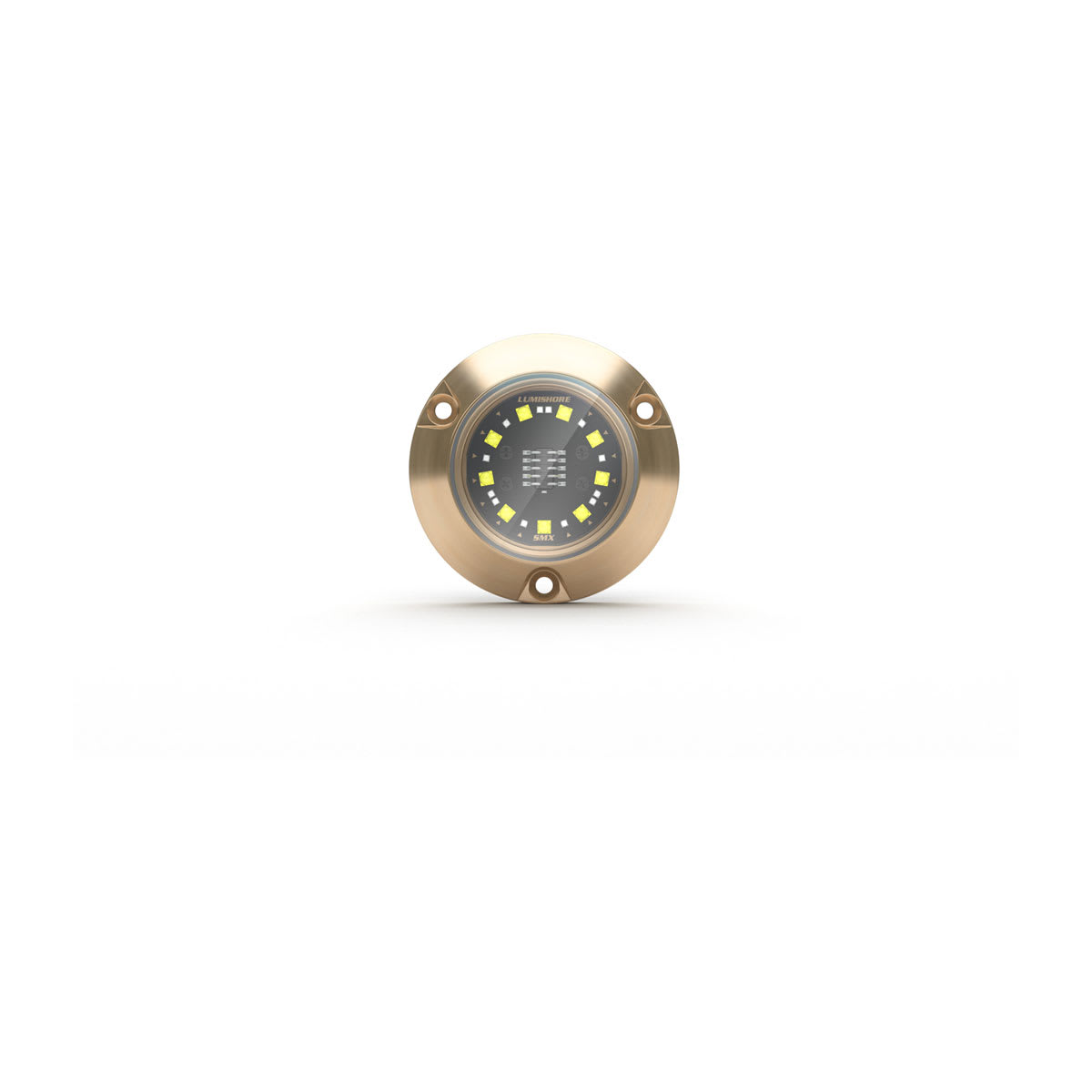

SMX24 Underwater Surface Mount are boat lights available in single or dual colours, with 3100 fixture lumens, simple installation, & marine-grade construction.
General |
|
| Warranty | 3 years |
|---|---|
| LED colors | Dual Color: Blue and White (6500K) Single Color (Blue) Single Color (White) |
| LED type | Blue and White: 12 x 3 W Blue/9 x 5 W White Blue: 12 x 3 W Blue White: 9 x 5 W White |
| Fixture lumens | 3,100 |
| Beam angle | 90° |
| Number of lights per Eclipse Comand Center/Expansion module zone | Up to four powered through ECLIPSE Command Center; up to 16 powered directly from vessel |
| Electrical installation | Simple 2 wire connection or ECLIPSE Command Center |
| Operating voltage | 12 V |
| Operating voltage range | 10.5-15 VDC |
| Current consumption 12 V (max) | 2.5 A |
| Average power draw | 30 W |
| Construction | Marine bronze body with Borosilicate glass lens |
| Water and dust rating | IP68 |
Control Options |
|
| Direct power via on/off switch | |
|---|---|
| Momentary switch | yes (via ECLIPSE Command Center) |
| Eclipse Command Center | |
| Compatible MFD | yes (via ECLIPSE Command Center) |
| Smart device | yes (via ECLIPSE Command Center) |
Lighting Functionality |
|
| Functionality with direct power | Blue & White: Startup in white; power cycle to change to blue, strobe modes, fade modes. Blue: Startup in blue. White: Startup in white |
|---|---|
| Applicable Controllers/Hubs |
Direct Power/ECLIPSE Command Center |
Mounting Dimensions |
|
| Mounting diameter clearance (with bezel) | 2.75″ (70 mm) |
|---|---|
| Frontal protrusion (profile) | 0.67″ (17 mm) |
| Mounting hole | 0.53″ (13.5 mm) |
| Dimensions (width) | 2.75″ (70 mm) |
| Dimensions (depth) | 0.67″ (17 mm) |
| Dimensions (height) | 2.75″ (70 mm) |
| Mechanical installation |
Three marine bronze screws (included). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately). |
