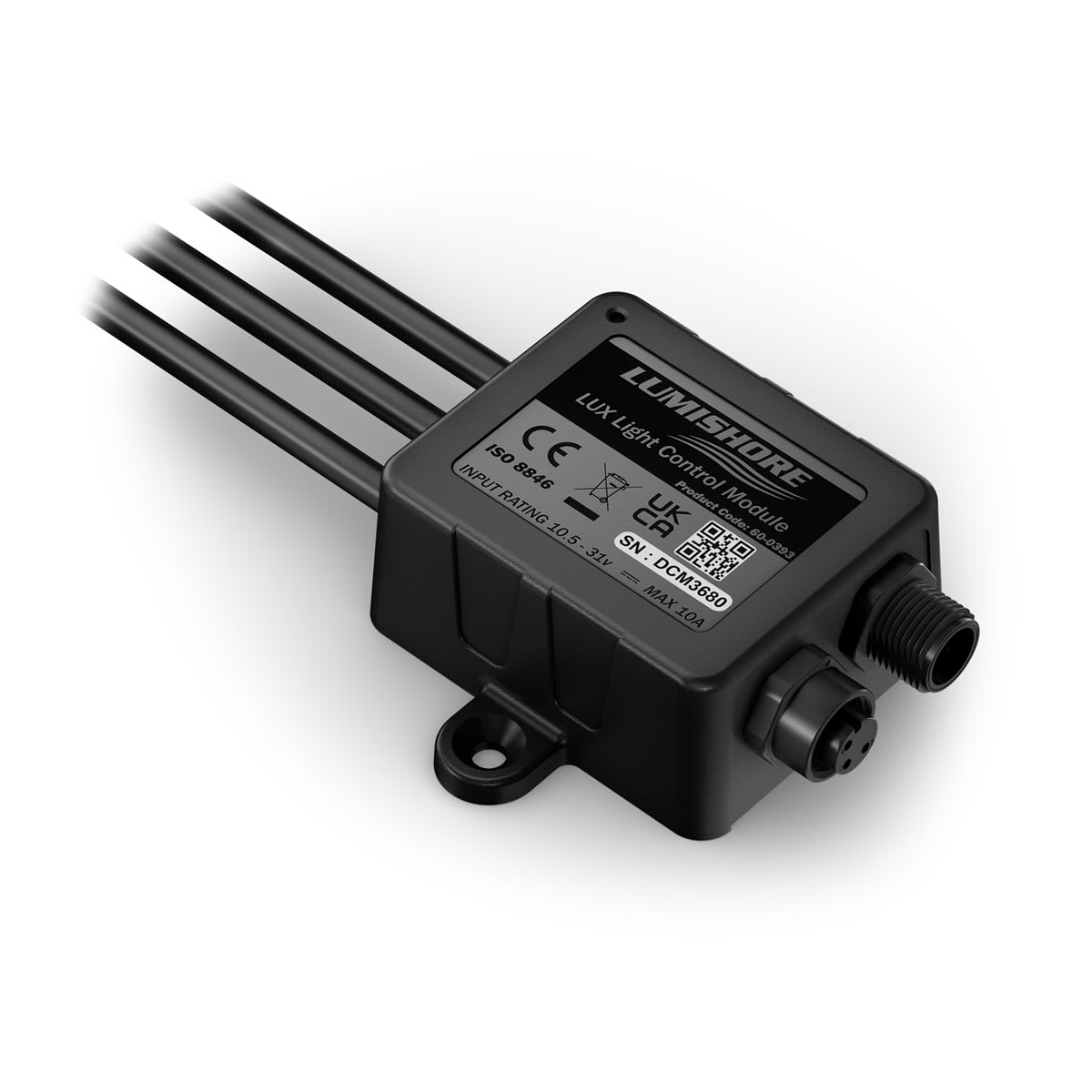

Required for all LUX downlights, courtesy lights, livewell lights, flood lights and light bars, this control module enables full-spectrum CRGBW color control1, white color tuning and advanced lighting features from your EOS-LUX Command Center
General
|
| Warranty |
3 years |
| Electrical installation |
Hard-wired |
| Operating voltage |
12 V/24 V |
| Operating voltage range |
10.5-31 VDC |
| Current consumption 12 V (max) |
0.05 A (device only) |
| Current consumption 24 V (max) |
0.03 A (device only) |
| Average power draw |
0.6 W (device only) |
| Construction |
Robust weatherproof ABS (flame retardant and halogen-free) |
| Water and dust rating |
IP68 |
Control Options
|
| Momentary switch |
|
| EOS-LUX Command Center |
|
Mounting Dimensions
|
| Dimensions (width) |
2.8″ (71 mm) |
| Dimensions (depth) |
1.06″ (27 mm) |
| Dimensions (height) |
3.07″ (78 mm) |
| Mechanical installation |
Screw fixings
|
