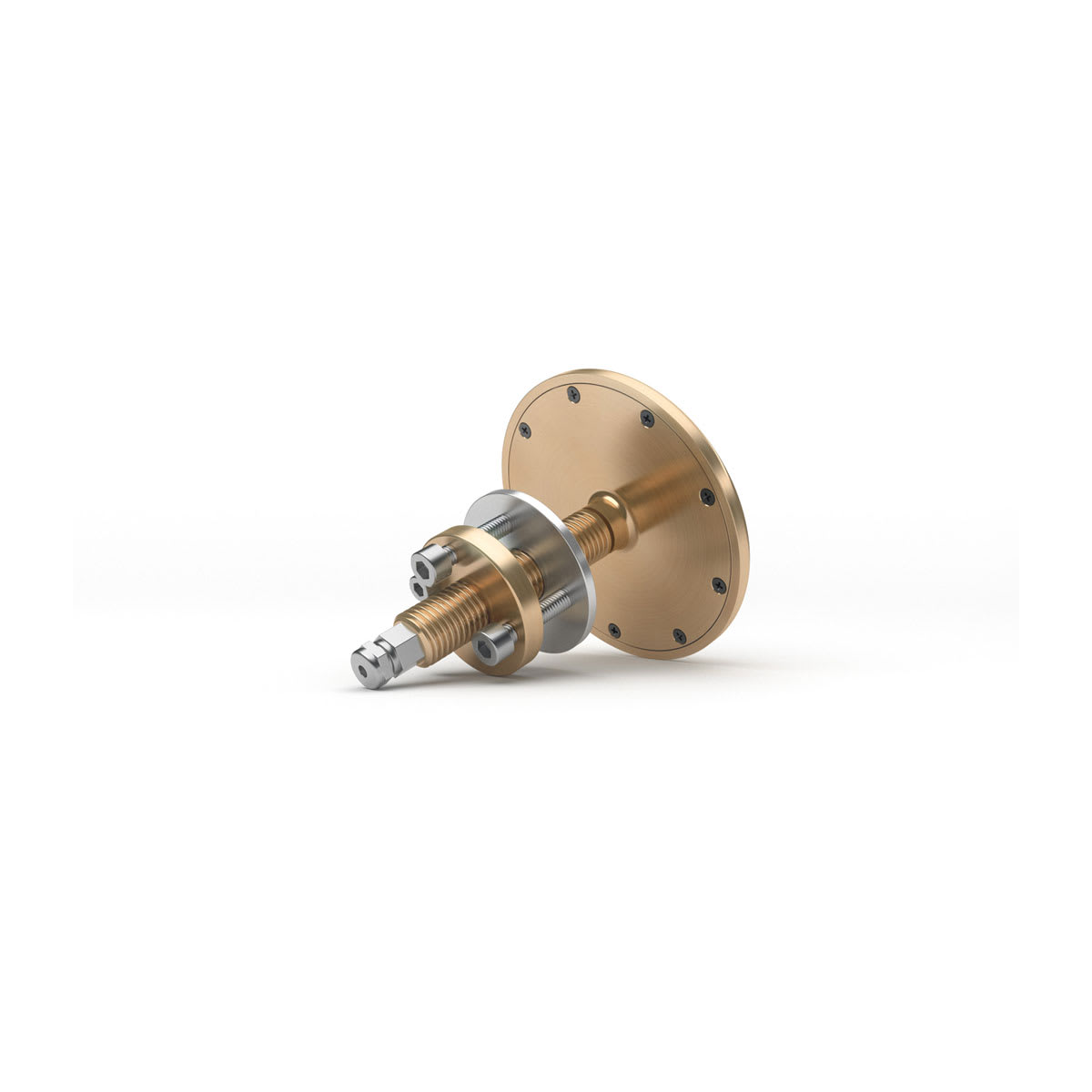

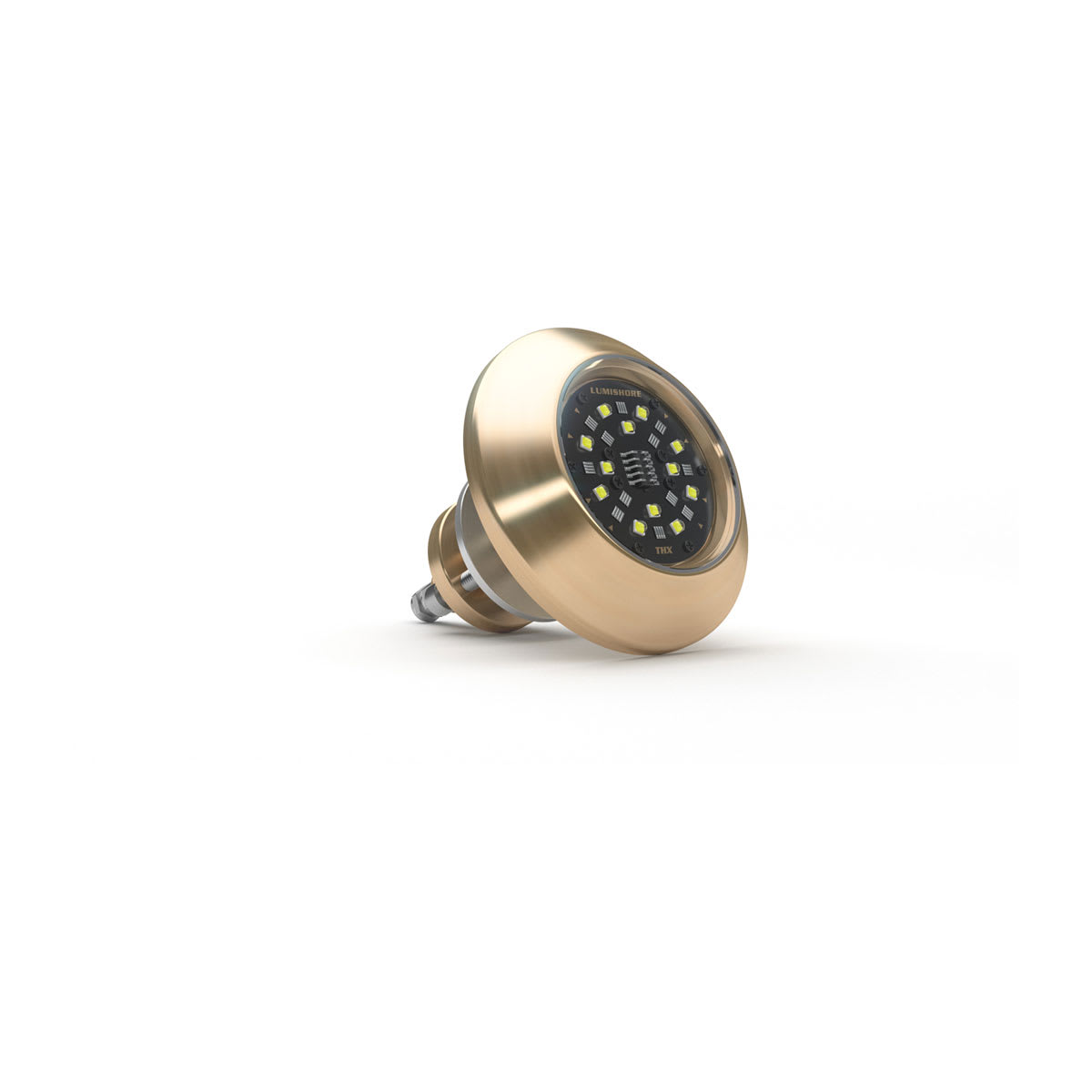

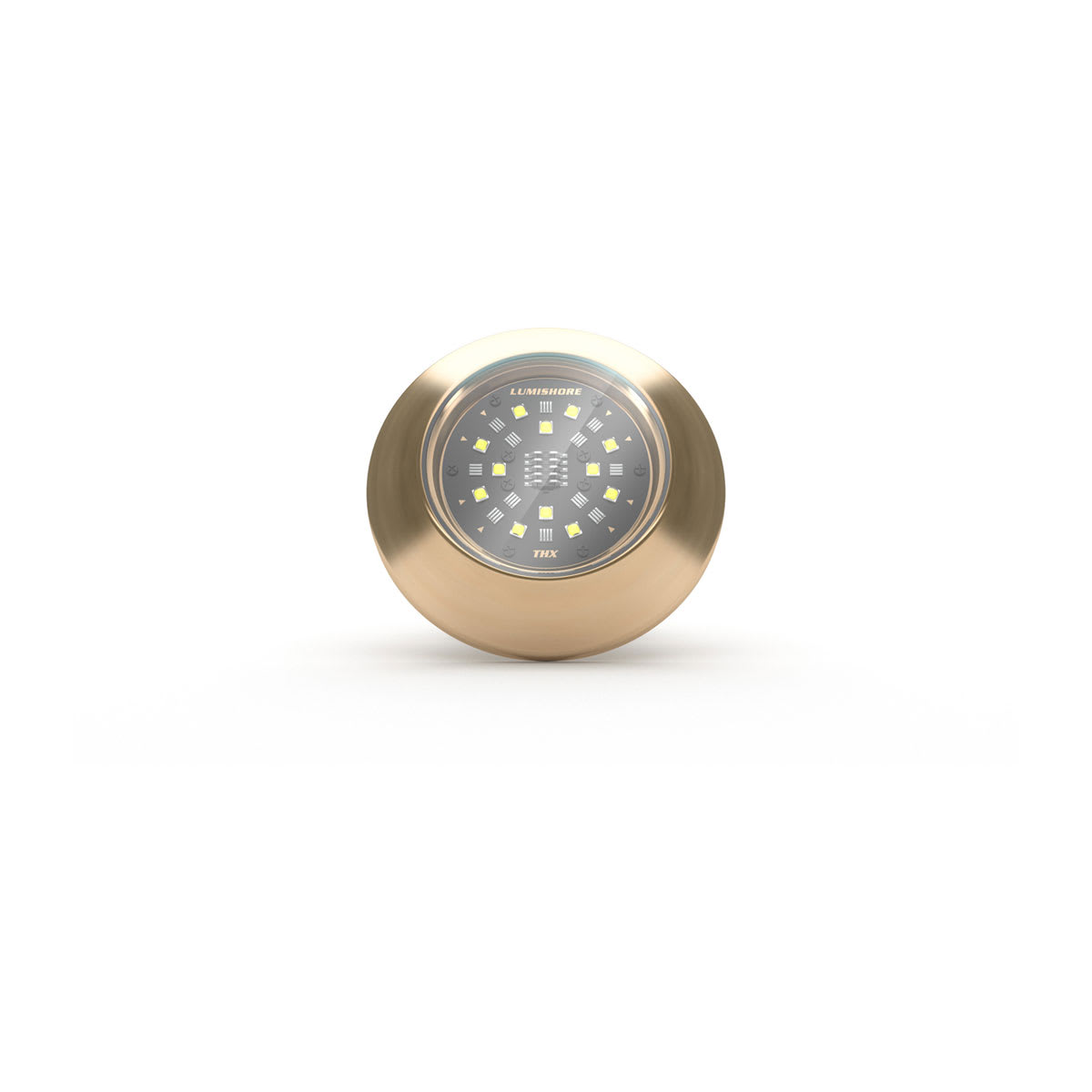

THX204 Underwater Thru-hull are blue LED boat lights with 6,100 fixture lumens, simple installation, exceptional brightness, and marine-grade construction.
General
|
| Warranty |
3 years |
| LED colors |
Single Color, White (6500K), Blue |
| LED type |
12 x 10 W White/24 x 3 W Blue |
| Fixture lumens |
6,100 |
| Beam angle |
110° |
| Electrical installation |
Simple 2 wire connection |
| Operating voltage |
12 V/24 V |
| Operating voltage range |
10.5-31 VDC |
| Current consumption 12 V (max) |
4.9 A |
| Current consumption 24 V (max) |
2.4 A |
| Average power draw |
59 W |
| Construction |
Marine bronze body with Borosilicate glass lens |
| Water and dust rating |
IP68 |
Control Options
|
| Direct power via on/off switch |
|
Lighting Functionality
|
| Functionality with direct power |
Startup in model color |
| Applicable Controllers/Hubs |
Direct power |
Mounting Dimensions
|
| Mounting diameter clearance (with bezel) |
3.75″ (95 mm) |
| Mounting depth clearance |
3.78″ (96 mm) |
| Frontal protrusion (profile) |
0.7″ (18 mm) |
| Mounting hole |
0.65″ (16.5 mm) |
| Dimensions (width) |
3.75″ (95 mm) |
| Dimensions (depth) |
4.48″ (114 mm) |
| Dimensions (height) |
3.75″ (95 mm) |
| Mechanical installation |
Bonding required on non-conductive hulls (via connection on housing). Not suitable for conductive hulls, including wood and carbon fiber. |
