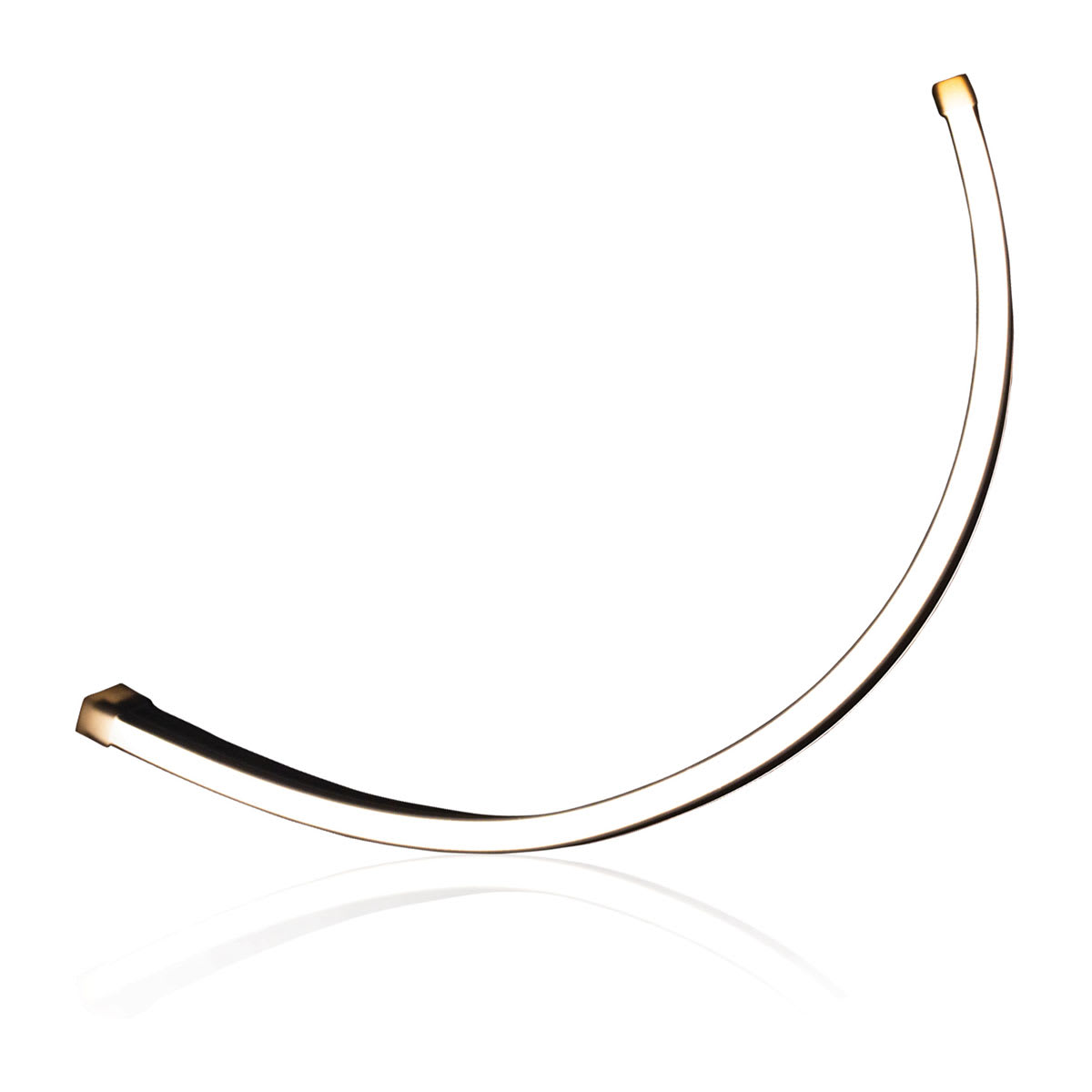

ECLIPSE SNL100 are neon-style boat lights with bend-flex design contours around curved surfaces, making them ideal for gunwales, cabin headlines, and T-tops.
General |
|
| Warranty | 3 years |
|---|---|
| LED colors | Full spectrum RGB, Blue, Blue and White (5000K), White (5000K) |
| LED type | RGB: 60 RGB/m Blue: 60 Blue/m Blue and White: 60 Blue/m, 60 White/m White: 60 White/m |
| Number of lights via direct power | Not limited |
| Number of lights per Eclipse Comand Center/Expansion module zone | up to 20 meters |
| Electrical installation | RGB: 4 wire Blue: 2 wire Blue and White: 3 wire White: 2 wire |
| Operating voltage | 10-15 VDC |
| Current consumption 12 V (max) | 0.5 A/m |
| Average power draw | 6 W/m |
| Construction | Fully encapsulated and potted with spot-free diffuser |
| Water and dust rating | IP68 |
Control Options |
|
| Direct power via on/off switch | yes (recommended control via ECLIPSE Command Center) |
|---|---|
| Momentary switch | yes (via ECLIPSE Command Center) |
| Eclipse Command Center | |
| Compatible MFD | yes (via ECLIPSE Command Center) |
| Smart device | yes (via ECLIPSE Command Center) |
Mounting Dimensions |
|
| Dimensions (depth) | 0.472″ (12 mm) |
|---|---|
| Dimensions (height) | 0.24″ (6.1 mm) |
| Mechanical installation |
Cut to length and seal cut end before installation with silicone (supplied). Cut in 25 mm steps. Mount with stainless steel screw clips (supplied). |
