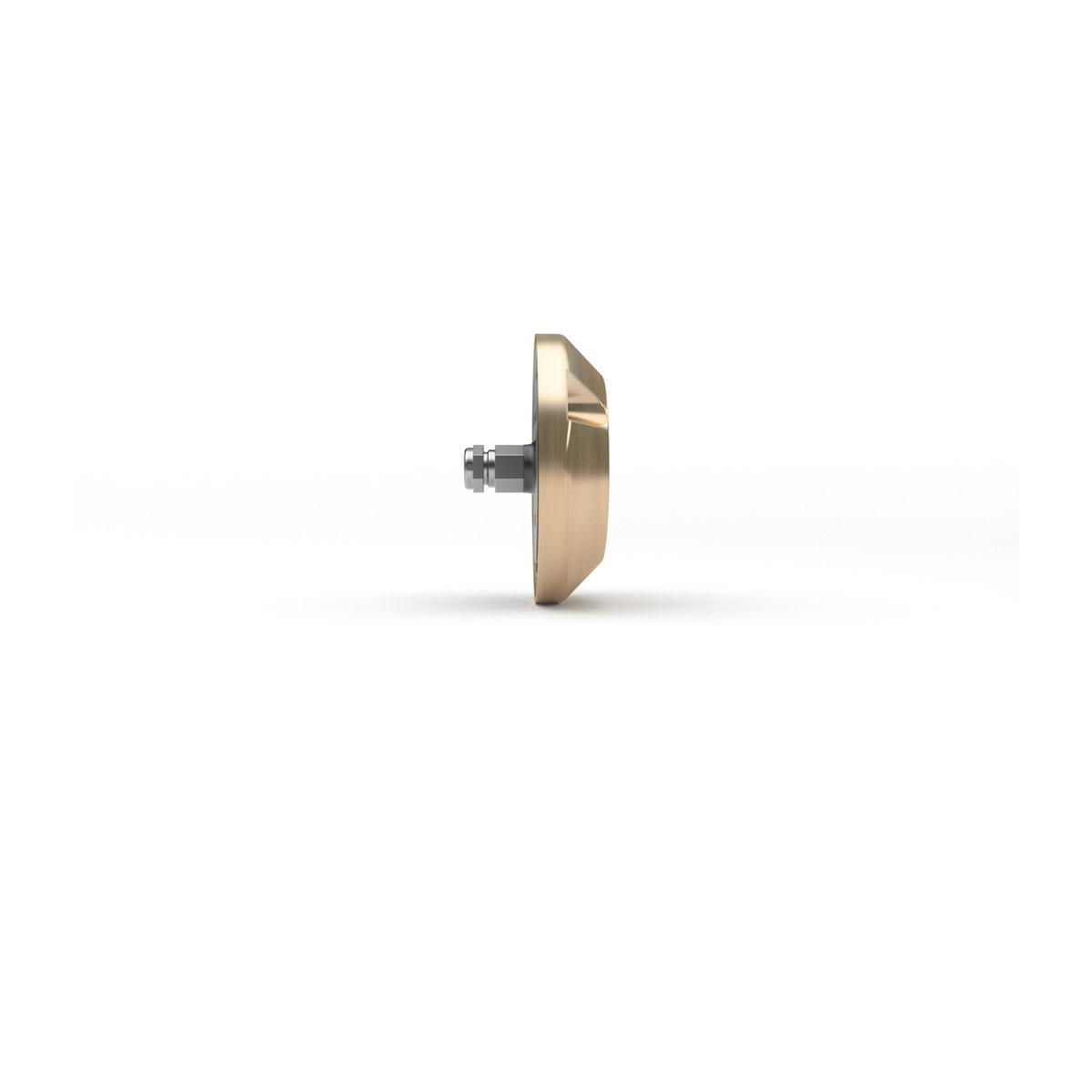

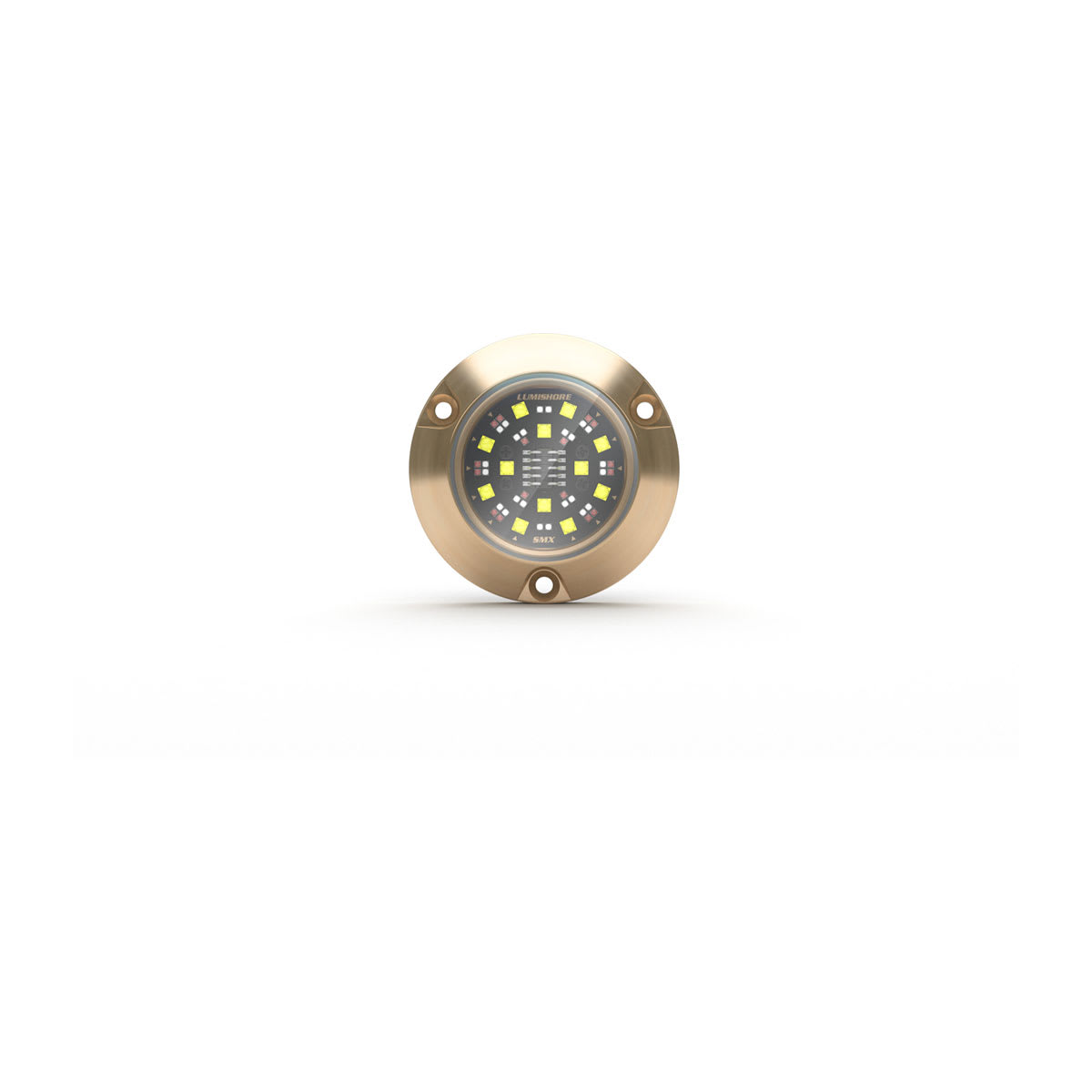

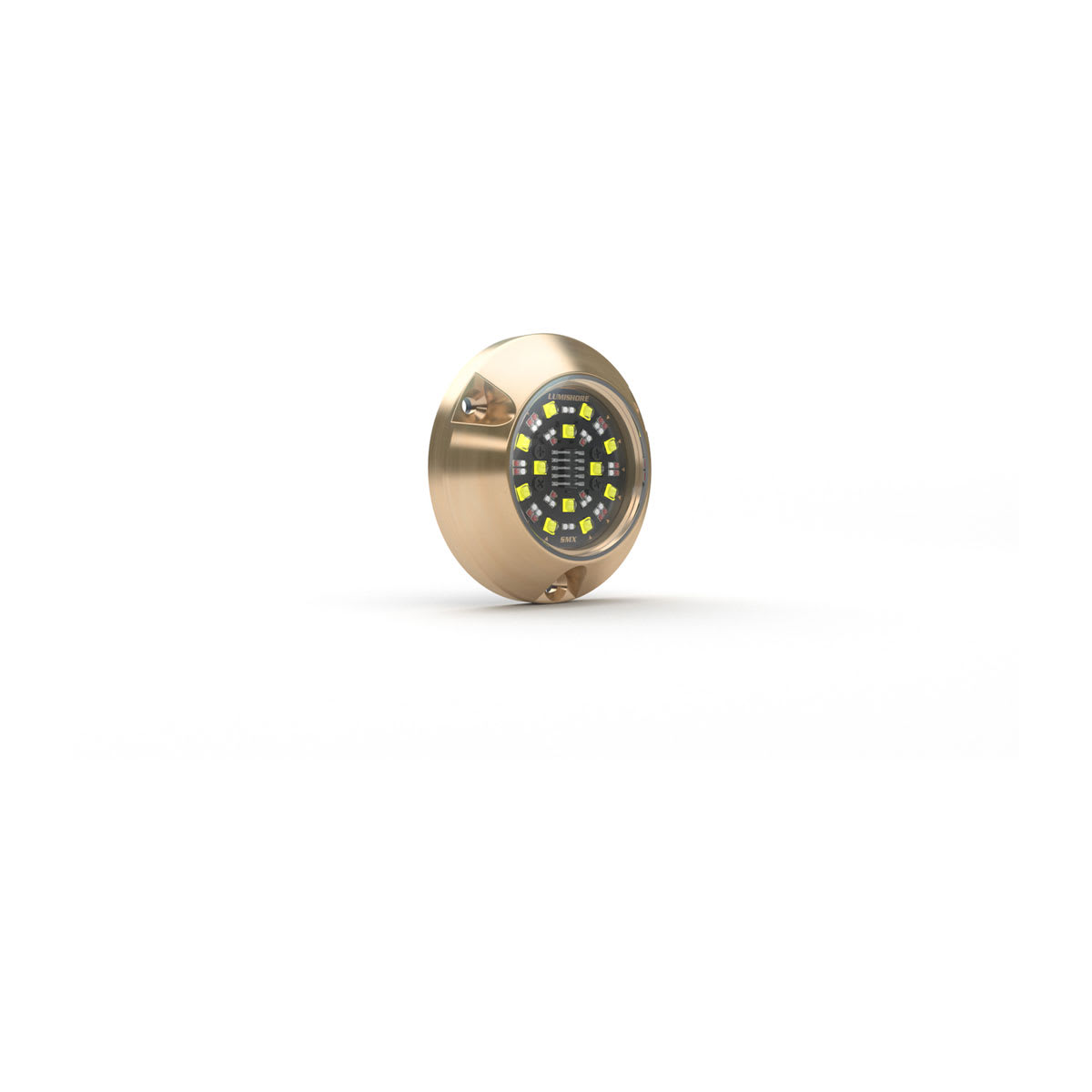

SMX154 Underwater Surface Mount are coloured boat lights, with 7000 fixture lumens, simple installation, and marine-grade construction.
General
|
| Warranty |
3 years |
| LED colors |
White (6500K) + Full spectrum RGB |
| LED type |
16 x 3 W Red/12 x 3 W Green/12 x 3 W Blue/12 x 10 W White |
| Fixture lumens |
7,000 |
| Beam angle |
90° |
| Electrical installation |
Plug and play |
| Operating voltage |
12 V/24 V |
| Operating voltage range |
10.5-31 VDC |
| Current consumption 12 V (max) |
4 A |
| Current consumption 24 V (max) |
2 A |
| Average power draw |
48 W |
| Construction |
Marine bronze body with Borosilicate glass lens |
| Water and dust rating |
IP68 |
Control Options
|
| Momentary switch |
yes (via EOS-LUX Command Center) |
| EOS-LUX Command Center |
|
| Hub required |
yes (EOS i-Connect Hub) |
| Compatible MFD |
yes (via EOS-LUX Command Center) |
| Smart device |
yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display |
yes (via EOS-LUX Command Center) |
Lighting Functionality
|
| Applicable Controllers/Hubs |
EOS-LUX Command Center/EOS i-Connect Hub
|
| External DMX/RDM |
yes (EOS i-Connect Hub) |
Mounting Dimensions
|
| Mounting diameter clearance (with bezel) |
3.7″ (94 mm) |
| Frontal protrusion (profile) |
0.7″ (18 mm) |
| Mounting hole |
0.53″ (13.5 mm) |
| Dimensions (width) |
3.7″ (94 mm) |
| Dimensions (depth) |
0.7″ (18 mm) |
| Dimensions (height) |
3.7″ (94 mm) |
| Mechanical installation |
Three marine bronze screws (included). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately).
|
