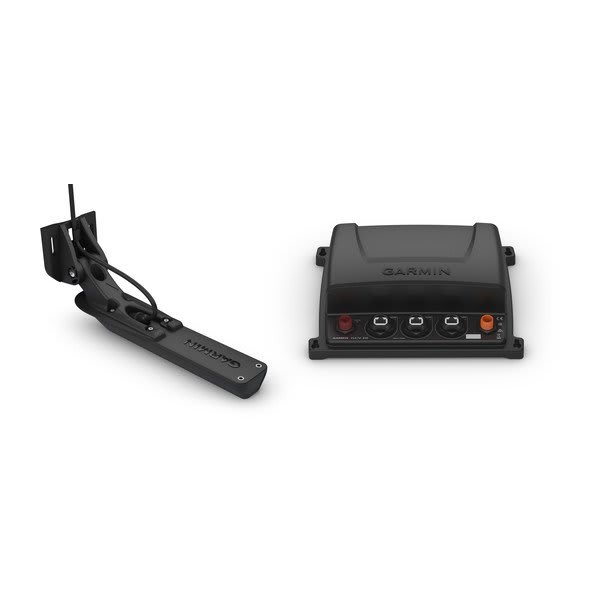

The Ultra High-Definition Scanning Sonar System is a GCV™ 20 Scanning Sonar Black Box w/ an optional transducer that provides crisp images & fish in stunning detail.
General |
|
| Dimension | 9.9″×7.6″×2.6″ (251 mm × 192 mm × 66 mm) |
|---|---|
| Weight |
1.86 lbs (845 g) |
| Water rating | IPX7 |
| Temperature range | From 5°F to 158°F (from -15°C to 70°C) |
Electrical Features |
|
| Compass-safe distance | 10.2 in. (26 cm) |
|---|---|
Sonar Features |
|
| Ultra High-Definition ClearVü | |
|---|---|
| Ultra High-Definition SideVü | |
| Frequency |
Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz |
| Transmit power | 500 W rms |
| Maximum depth |
200′ Ultra High-Definition ClearVü 125′ to each side Ultra High-Definition SideVü, 250′ total, at a maximum depth of 30′ |
Transducer Support |
|
| Ultra High-Definition ClearVü | |
|---|---|
| Ultra High-Definition SideVü | |
Networking & Connections |
|
| Garmin Marine Network Ports |
3 |
|---|---|
